Model | JN-X1 | ||
Loading quantity | CKD 140 pcs/ CKD 130pcs -40HQ | ||
Specifications | |||
Overall Size | 1750*700*1060(mm) | Tyre | 90/80-10in |
Motor Type | Hub motor/DC/Sine Wave/C24 | Brake Type | Disc/Drum |
Rated Power | 600W | Brake Mode | oil brake / machine brake |
Peak Power | 1800w | Max. Speed | 36~38KM/h |
Driving Mode | Shaft drive | Battery | battery lithium /lead acid 60V20Ah |
Max. torque | 12.7N.M | Mileage Per Charge | 50~55KM |
Front Shock Absorber | φ31 hydraulic Shock Absorber | Charging Time | 6-8H |
Rear Shock Absorber | φ24 hydraulic Shock Absorber | Curb Weight | 88KG |
Controller | Hydraulic shock absorption | Min. Ground Clearance | 130mm |
In appearance, JN-X1 adopts the "functional style" design, with cutting lines, fighting armor style and high-quality body plastic parts, making the body full of texture.
JN-X1 has integrated a fingerprint sensor in the center instrument, providing pixel-level fingerprint recognition and controlling vehicle start by fingerprint, bringing a new experience of use.

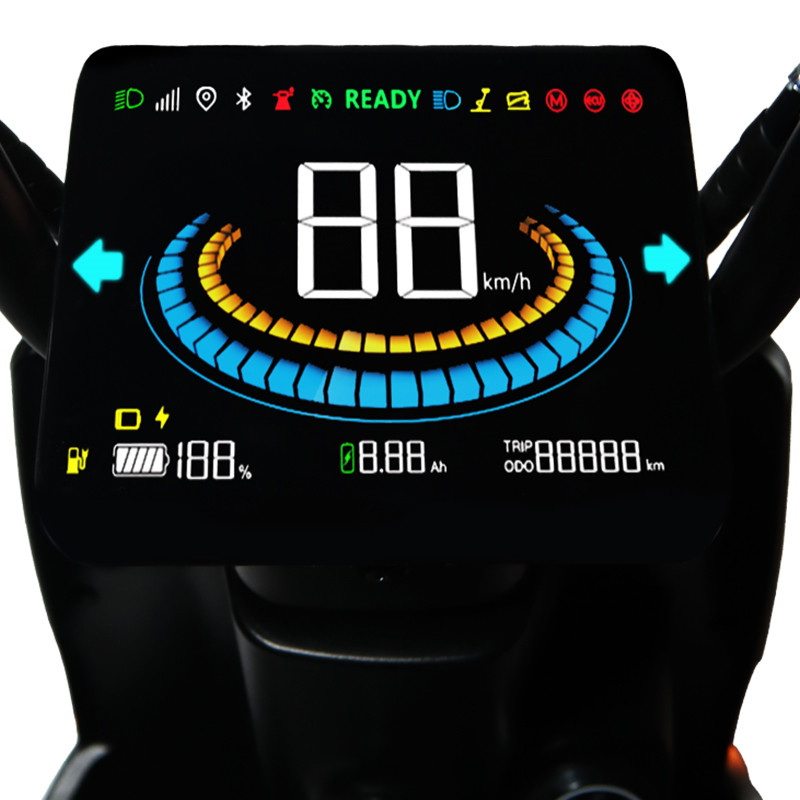

All cycling data and vehicle condition at a glance, high-definition display, allowing owners to fully understand the vehicle condition information when they are out and about.

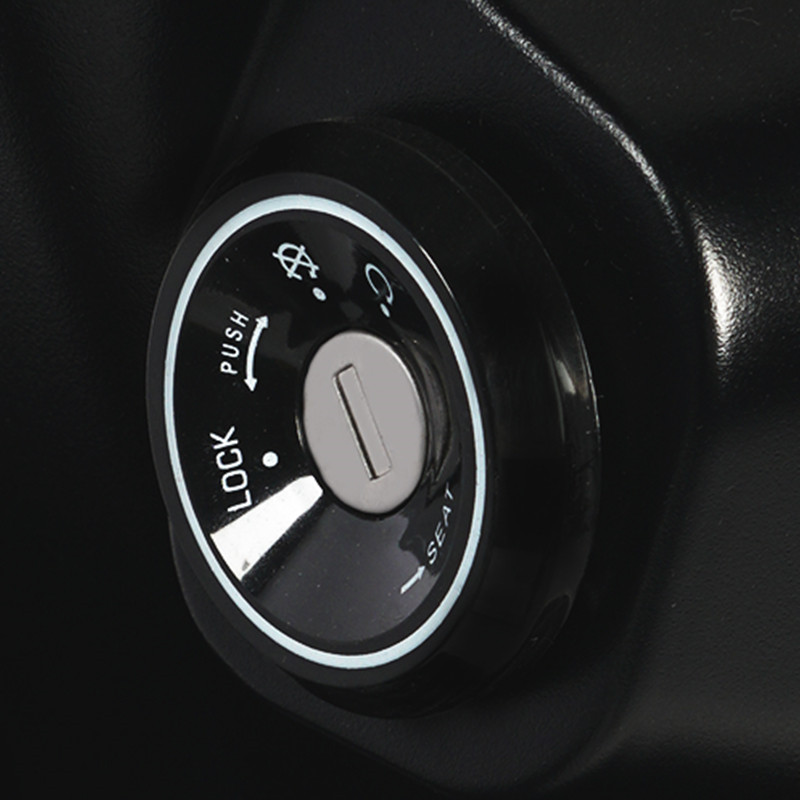

The one-piece combination switch, which combines the functions of starting, locking and switching the car seat in one, makes the vehicle operation more convenient and faster.

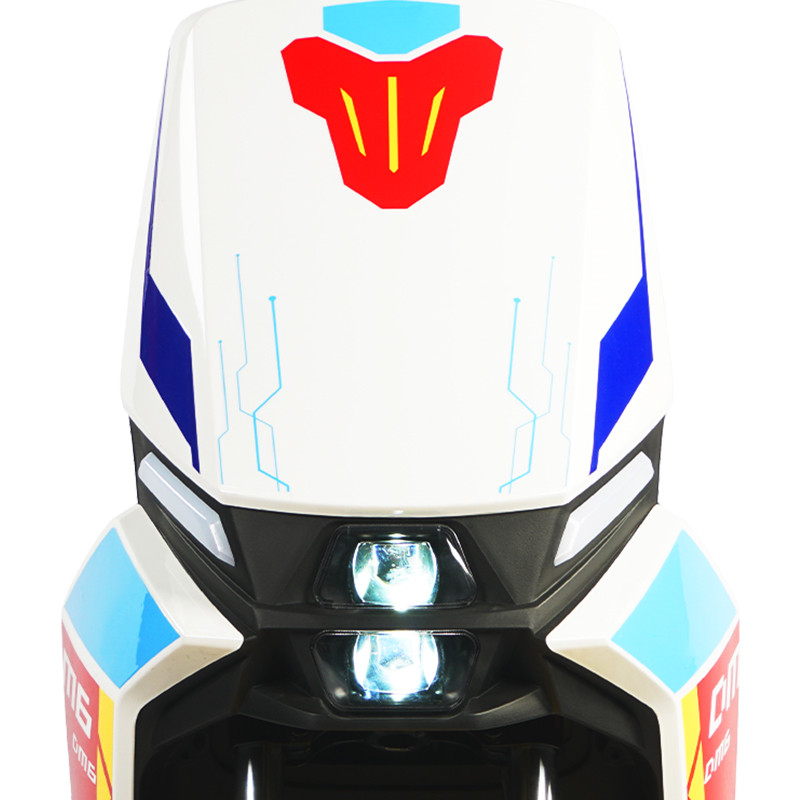

Matrix lens headlights to JN-X1 to bring a more technological sense of shape, with a farther light irradiation distance and more excellent light gathering capacity, increasing the safety of night driving.
The power system of JN-X1 adopts a newly upgraded 600-watt motor, with a 50% increase in motor efficiency, bringing surging power output, which is not only fast in speed, but also can easily cope with steep slopes. Equipped with a maximum 60V20Ah battery, it provides a longer range for the vehicle.

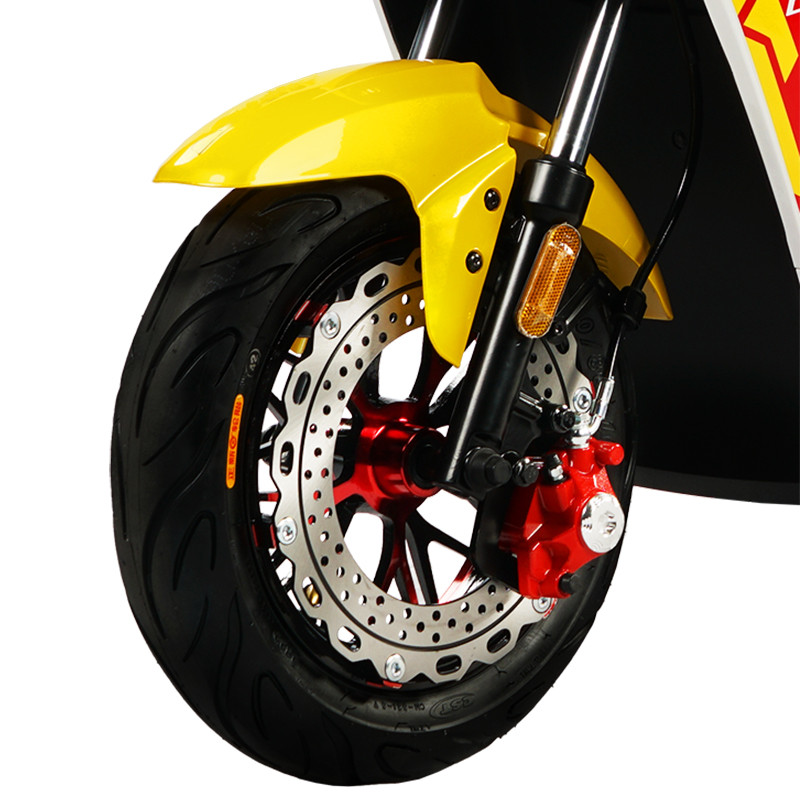

JN-X1 front wheel with high-performance disc brakes, not only a more sporty visual appearance, larger brake discs, with better heat dissipation, braking effect is also fully guaranteed
The wider and thicker tires have better anti-slip performance on wet roads and better grip on dry ground, which provide a strong guarantee for driving safety and improve the handling and comfort of the vehicle.

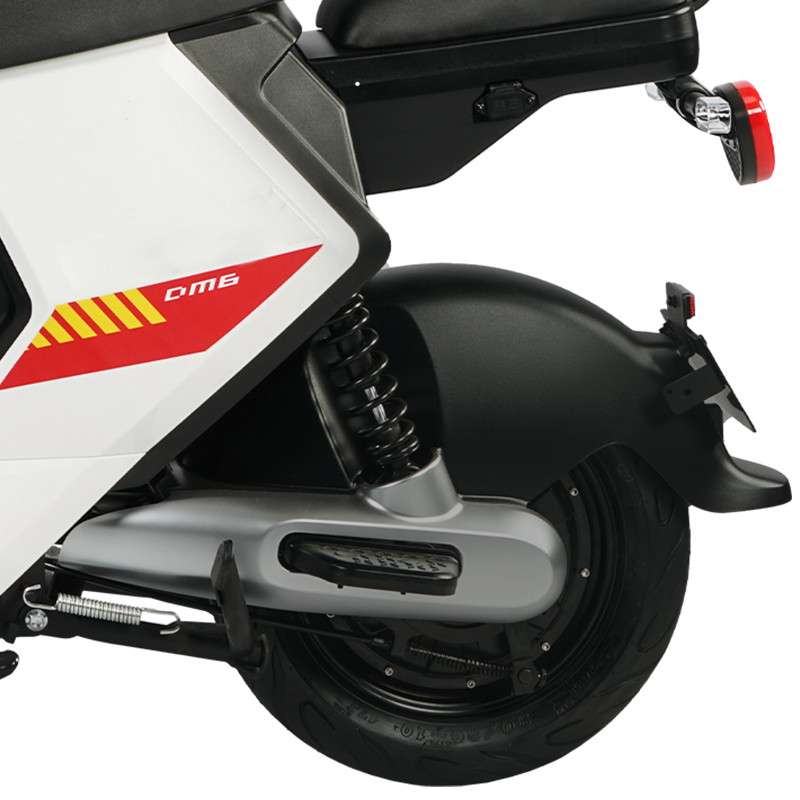

Aluminum alloy rims with excellent thermal conductivity, lighter weight than ordinary steel or iron rims, can effectively reduce the burden of vibration and reduce power output loss, so that the user's riding experience more comfortable
The front wheel is equipped with a 27 mm diameter hydraulic shock absorber, which enables users to ride comfortably, as well as significantly improving the impact resistance of the vehicle's mechanical structure and extending the life of the mechanical system
A variety of body color to meet the personalized needs of different users
